Eye bridge

Name: Eye bridge
Brand: Osculati
SKU: 39.322.04
Price: 0.65 EUR
Availability: InStock

Availability: In stock

Product code: 39.322.04

Brand: Osculati

€0.65

VAT excluded: 0.53€

Modello

you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

Description

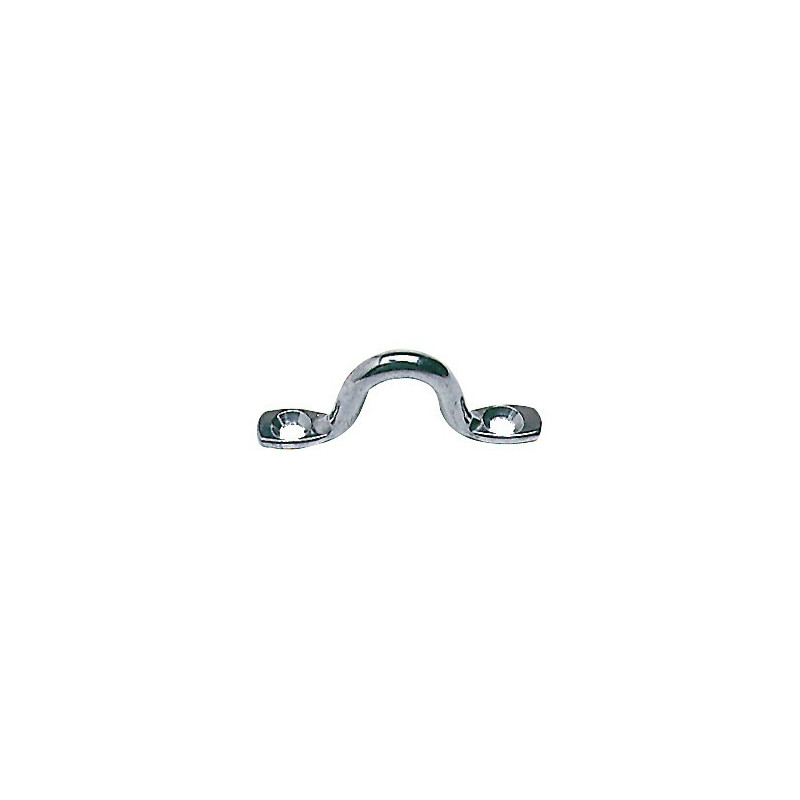

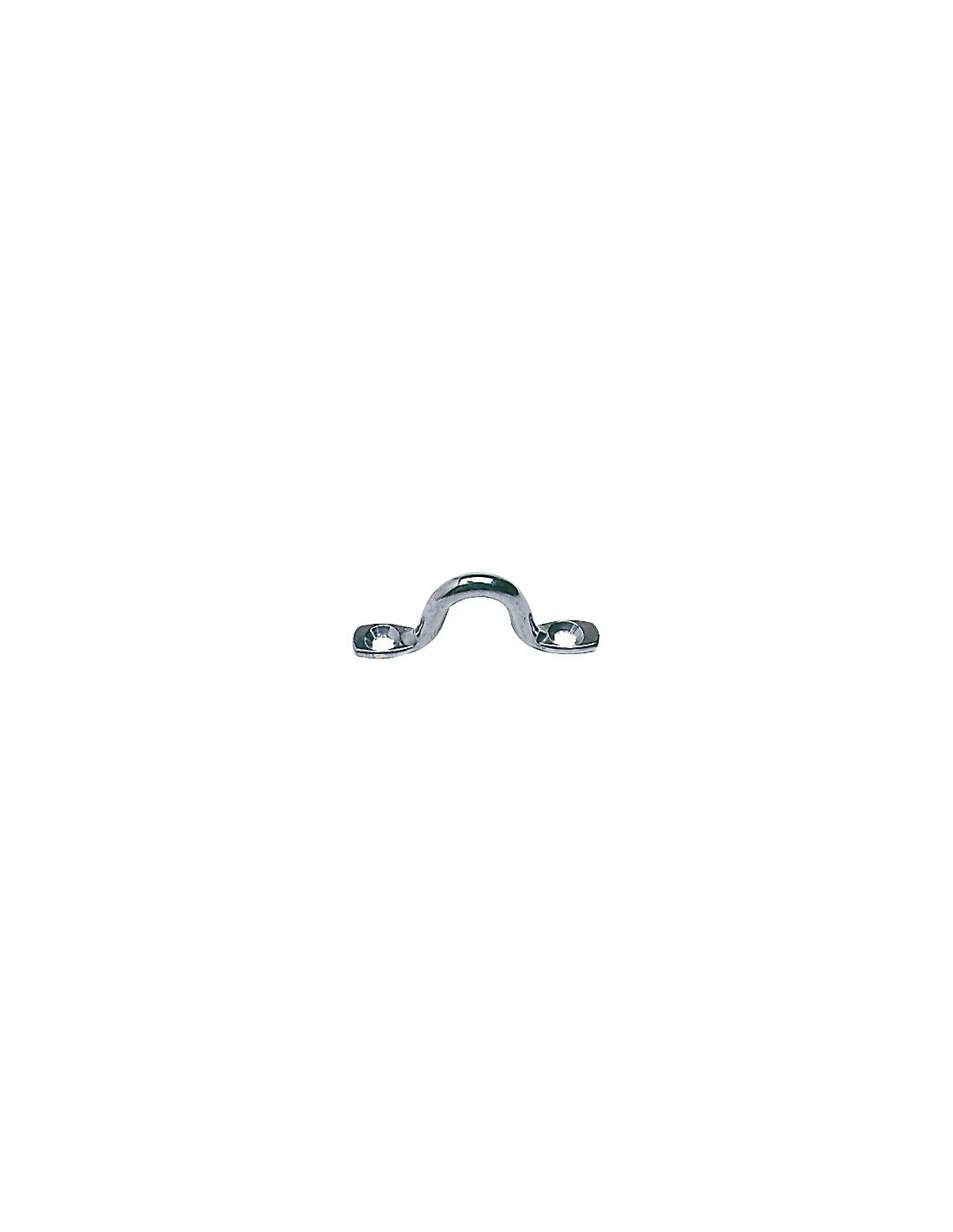

Made of stainless steel, forged and polished.

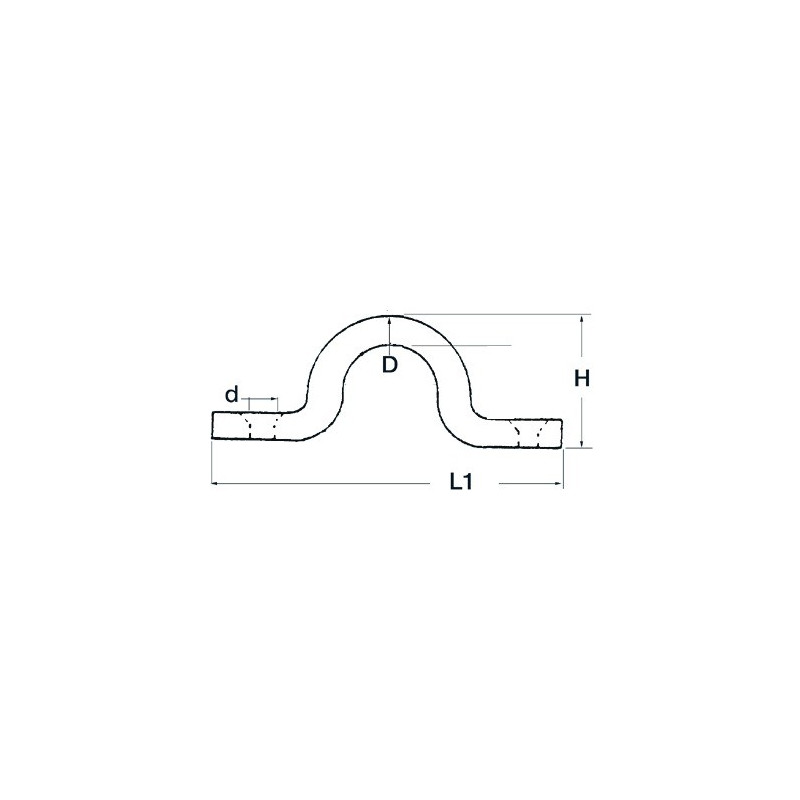

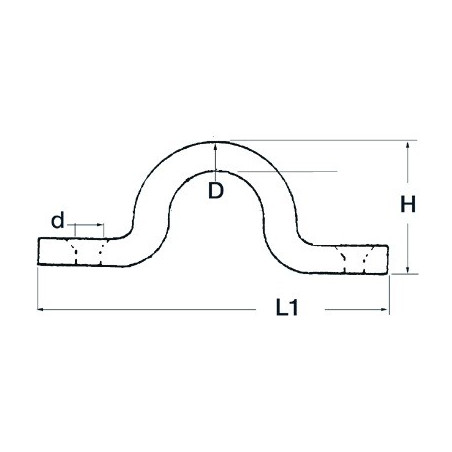

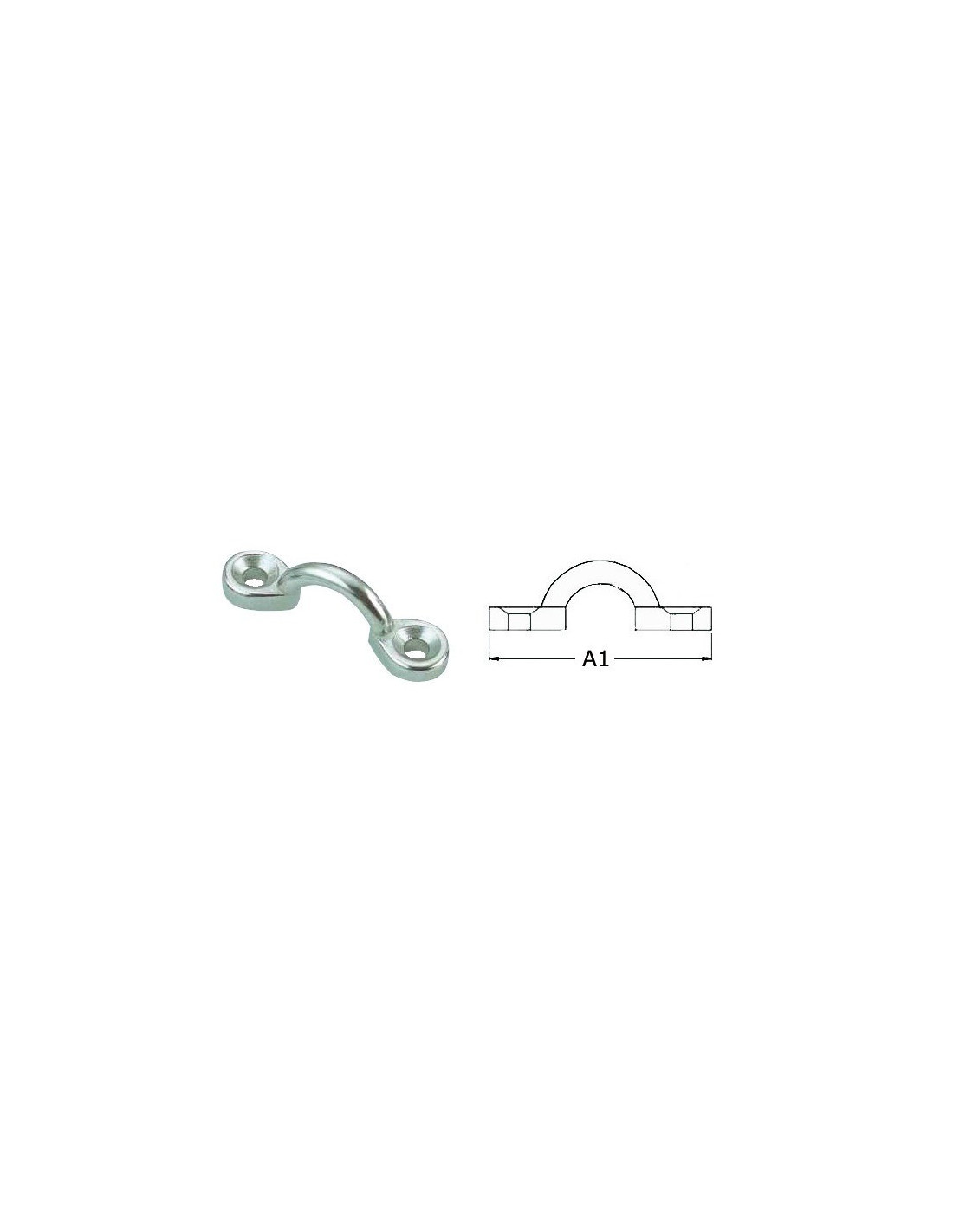

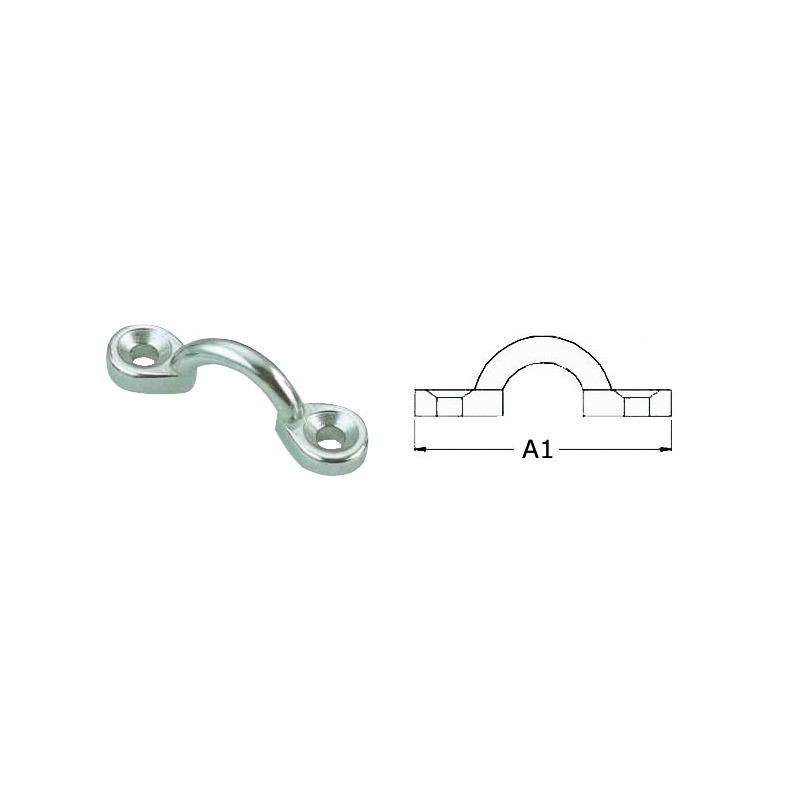

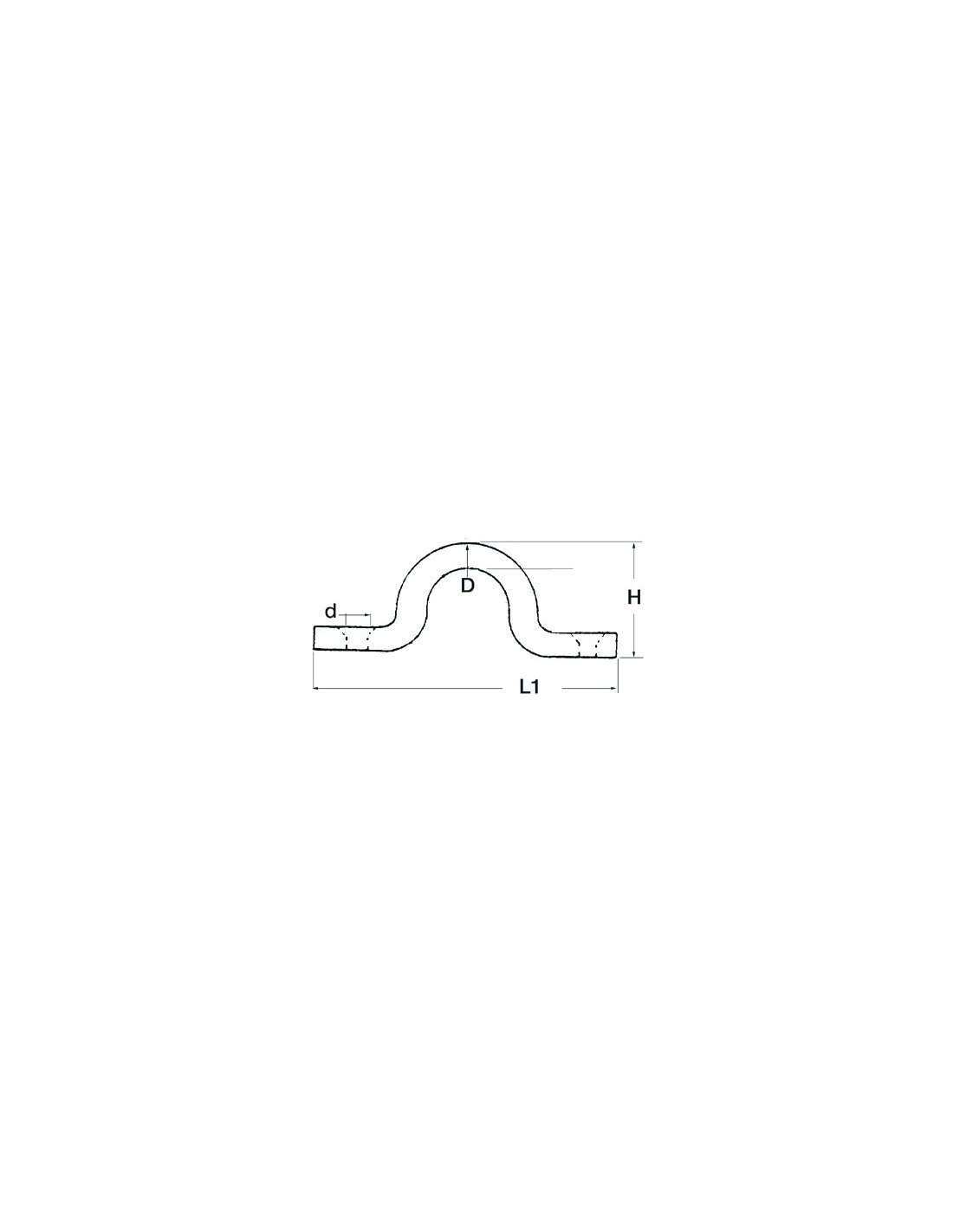

Model	D mm	L1 mm	H mm	A1 mm	d mm
A	4	42	15	32	3.8
B	5	50	18	37	4.5
C	6	61	22	46	5.6
D	8	67	25	49	6.9
E	10	84	28	61	9.3
F*	5	48	15	35	4.8

* Microcast model

Brand

Reference 39.322.04

In stock 38 Items
